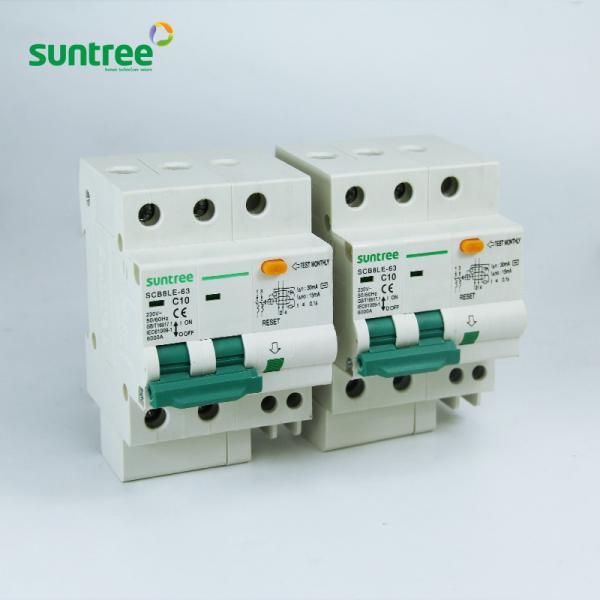

Panel Mounting 300mA 2P RCBO Circuit Breaker IEC60898

Product Categories
Wenzhou Xinchi International Trade Co.,Ltd
Contact Now

Panel Mounting 300mA 2P RCBO Circuit Breaker IEC60898

Brand Name : SUNTREE

Model Number : SCB8LE

Certification : IEC CE

Place of Origin : Zhejiang, China

MOQ : 30 Piece/Pieces

Supply Ability : 5000 Piece/Pieces per Month

Packaging Details : standard carton packing

Type : Residual Current operated Circuit breaker

Pole : 1P+N,2p 3p 4p

Product name : Overcurrent Circuit Breaker

Standards : IEC60898-2

Rated breaking capacity : 4.5KA/6KA

Rated current : 1~63A

Mechanical Life : up to 20,000

Protection degree : Terminals IP20,Housing IP40

Operqating temperature : -25~+55

Rated voltage : 230/400V

Standard : IEC60898

Breaking capacity : 6kA

Tripping curve : C,B

Contact Now

RCD RCBO SCB8LE 30mA residual current circuit breaker with overcurrent protection with cover IP40
Product Description
SCB8LE earth leakage circuit breaker is used for the protection, It confirms to IEC60898 & IEC61009.1.
1,Material: Using PC retardant polycarbonate,good heat resistance,impact resistance,flame retardant properties.
2, Easy to install: tunnel type terminals pressure, easy to install and convenient.
3, Securely installed: snap removable the new design is more flexible use, more tightening.
4, Rapid extinguishing system: interrupter piece with steel material, copper plating on steel, steel to ensure corrosion resistance.
5, Shorted coil: a shorted coil using copper manufacturing molding, fine copper.
6, Leading electrical copper: Uniformly thick galvanized copper, can achieve excellent thermal performance.
Product Parameters
Type
SCB8LE-63
Pole
1P/2P/3P/4P
Rated Current
1,2,3,4,6,10,16,20,25,32,40,50,63A
Rated Voltage
230V/400V/415V AC
Rated Residual operating current
10mA 30mA 100mA 300mA
Breaking capacity
4.5ka/6ka
Rated Current off-time
≤0.1s
Electrical Life
4000Times
Mechanical
20000Times
Certificates
IEC,TUV,CE,GB
Standard
IEC60898;IEC61009.1
Installation
On symmetrical DIN rail 35mm / Panel mounting

Panel Mounting 300mA 2P RCBO Circuit Breaker IEC60898

Product Details Show
Panel Mounting 300mA 2P RCBO Circuit Breaker IEC60898
Application
Panel Mounting 300mA 2P RCBO Circuit Breaker IEC60898
Company Profile
XinChi Electric Group Co., Ltd is a group company,There are four branch companies subordinate to it. Registered trademark is "suntree".
Main Products: AC&DC Circuit breaker, Solar system parts,SISO-40 Solar Inverter/Cable
,Connector,Contactors, MCCB, ATS auto transfer switch, DC Combiner Box, Waterproof distribution box,etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,SONCAP,ROHS, Nemko, PCT,CCC etc
Main markets:Australia,New Zealand,&other worldwide markets
Panel Mounting 300mA 2P RCBO Circuit Breaker IEC60898
Panel Mounting 300mA 2P RCBO Circuit Breaker IEC60898
Panel Mounting 300mA 2P RCBO Circuit Breaker IEC60898
FAQ
Q: How can i trust you and your company ?
A: Suntree is a group company, we have 6 subcompanies. Have cooperation with LS, EKF the world-class companies. Our company over 500 employees, products pass CE,IEC,TUV,SAA, RCM, ROHS certificates.
Q: How long is your products warranty ?
A: The warranty period of our products is 2 Years.
Q: How about inspection?
A: We have the whole inspection system from raw material to end products include Transient test, delay test,mechanical life test and so on.
Q: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
